flexible bituminous paper for insulating panels - PACO 9

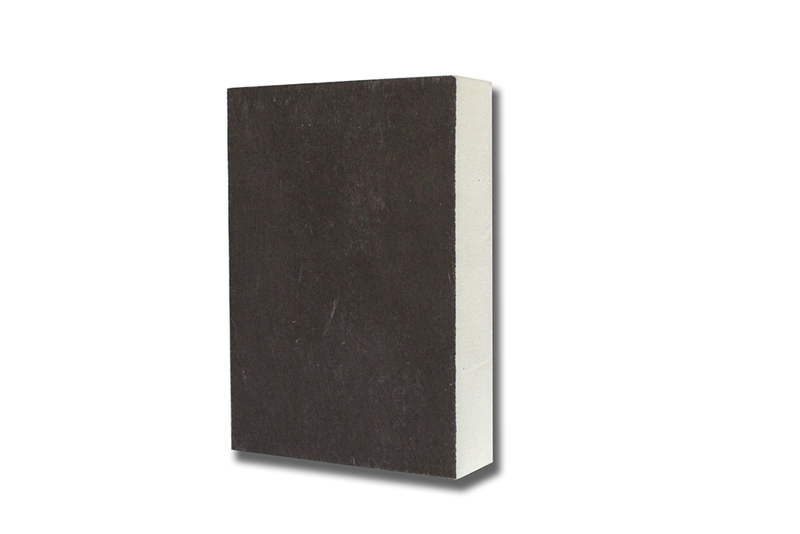

Flexible face for low thickness insulation polyurethane boards

BITUMEN
FINISHINGBITUMEN FINISHING
LIGHTNESSLIGHTNESS
 HEAT
RESISTANCE HEAT RESISTANCE
PROTECTIVE SUPPORT PROTECTIVE SUPPORT
CHARACTERISTICS

This product is the cheapest and lightest facing, exclusively proposed for low thickness insulation polyurethane boards. It is basically closed, therefore, in order to limit the creation of blisters and to allow the discharge of blowing gas in excess, punching the facing itself, with a spiked calander, is recommended once the panel has reached the exit of the double belt conveyor.

APPLICATIONS

PACO, available in 90 g/m2 or 120 g/m2 versions, it is the ideal facing for panels meant for roof insulation and for the insulation of attic floors with insulation material between concrete slab and bearing structure. The so-made panel is also used in the separation of cold basements and heated residential rooms.

Contact us
DATA SHEET
CHECKED CHARACTERISTICS* NORM UNIT OF MEASURE VALUE
Mass per unit area EN 13859-2 g/m2 85±6%
Thickness EN 1849-1 mm 0,1±15%
Tensile Strength EN 13859-2 N/5cm MD: 190±15%
CD: 90±15%
Elongation EN 13859-2 % MD: 2-3%
CD: 2-3%
Nail Tearing EN 13859-2 N MD: 5±15%
CD: 5±15%
Water vapour transmission property EN 13859-2 g/m² x 24h
m
WDD: 65±15%
Sd=0,5
23°C 0/75% UR
Dimensional stability EN 13859-2 (80°C) % 0<ΔL<0,5
Flexibility at low temperature EN 13859-2 °C -20 °C
Burst resistance   Kg/cm2 1,1 - 1,2

Product subject to CE mark according to EN 13859-2

*data from one production, they could be updated
