UNICO
Bituminous flexible support for PIR/PUR rigid panels
FIBERGLASS CARRIER
ROOF + WALL
PROTECTIVE SUPPORT
COLD APPLICATION
INTX S is the upgrade of INTX 3 version; it is available in a range of weight from 330 to 370 g/m2. The heavier and stronger fiberglass carrier is coated with a special mineral finishing bonded with particular blends of polymers and additives. INTX S has included weather performances and flameretardant behaviors (WP FR).

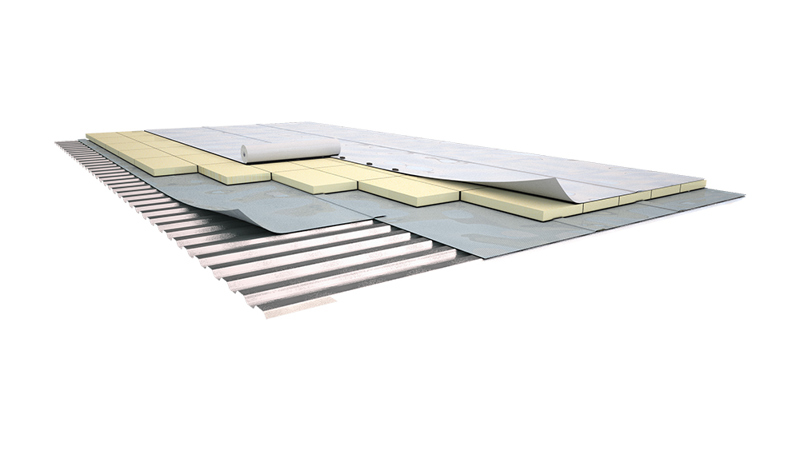

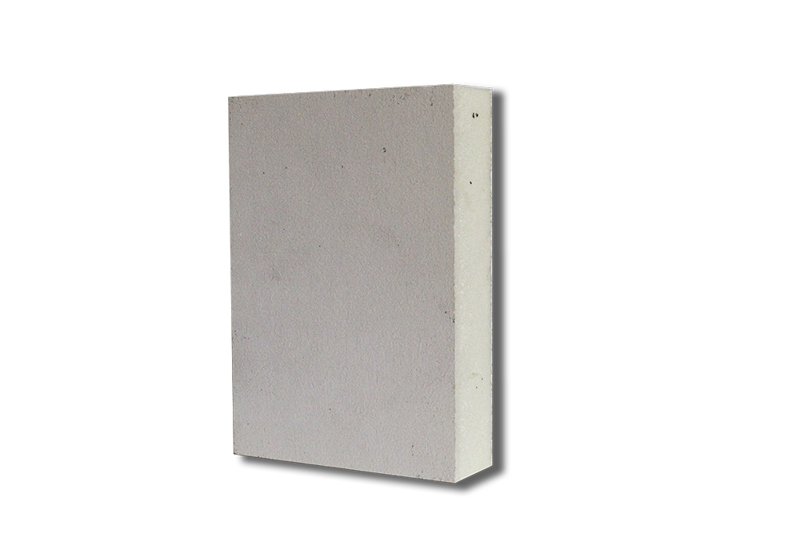

It is the ideal upper facer in cold adhesive applications, in build up roofs, in cavity walls, in E.T.I.C.S. and in flooring insulation as well. This mineral coated face is also used as lower facer in the insulation board combined with ASCO facers. This stronger setting increases the adhesion of the facer to the foam stabilizing the following requirements as well:
- the panel improves its dimensional stability and flatness
- the panel is more resistant when handled at the building site and the walkability value.
- the panel is more resistant at fire exposure
- the face is more resistant against peeling off edges
- the face is aesthetically better
| CHECKED CHARACTERISTICS | NORM | UNIT OF MEASURE | VALUE |
|---|---|---|---|
| Mass per unit area | EN 1849-1 | g/m2 | 330-410 |
| Thickness | EN 1849-1 | mm | 0,6±15% |
| Tensile Strength | EN 12311-1 | N/5cm | MD: 400±15% CD: 330±15% |
| Elongation | EN12311-1 | % | MD: 1-2% CD: 1-2% |
| Dimensional stability | EN 1107-1 (80°C) | % | MD: -0,3<ΔL<0,3 CD: -0,3<ΔL<0,3 |
| Fire reaction | EN 11925-2 | E | |
| Determination of water absorption | EN ISO 535 method COBB60 |
g/m² | 40 |
Advanced facings for rigid boards
Bituminous flexible support for PIR/PUR rigid panels
Upper face with strong water impermeability and high vapor permeability
Flexible support for PIR/PUR rigid boards, fire barrier
Facer that increase the value of weather performances and fire resistances of final gypsum plasterboard
