UNICO
Bituminous flexible support for PIR/PUR rigid panels
BITUMINOUS LINES
FIBERGLASS CARRIER
TORCHABILITY
PROTECTIVE SUPPORT
HEAT RESISTANCE
ROOF

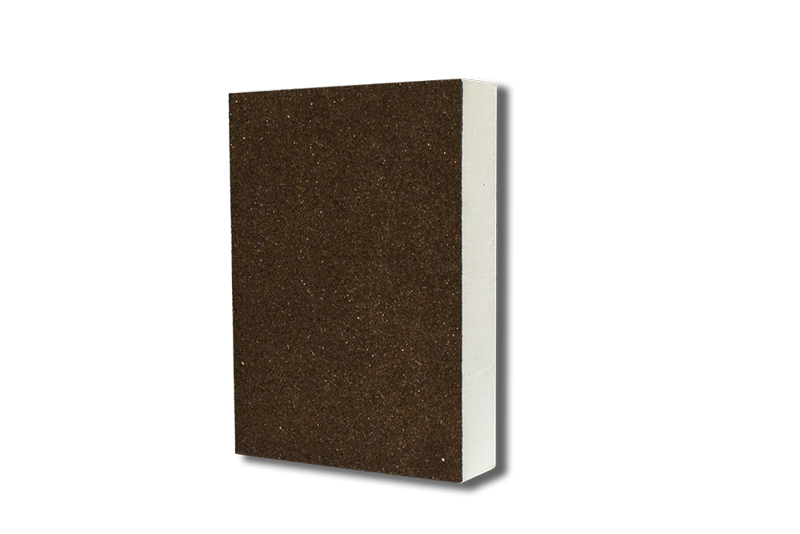

ASCO 3 is the talc version, available in ca 400 g/m2; thanks to its innovative formulations it shows a flame retardant behaviour. The enhanced weight allows to use an higher foam expansion pressure, avoiding at the same time any passage of the foam itself throughout the pinholes.
It is a facer suitable mainly for Polyurethane panels meant for pitched and flat roofs thermal insulation; the so-made panel is the suitable facer for torch-on membrane application, thanks to its resistance to torching and high dimensional stability of the carrier. This facer is mainly used in panels insulating roofs subject to possible surveys, flat walkable roofs, roofs destined to parking areas and roof gardens.
| CHECKED CHARACTERISTICS | NORM | UNIT OF MEASURE | VALUE |
|---|---|---|---|
| Mass per unit area | EN 1849-1 | g/m2 | 380-420 |
| Thickness | EN 1849-1 | mm | 0,74±15% |
| Tensile Strength | EN 12311-1 | N/5cm | MD: 320±15% CD: 220±15% |
| Elongation | EN12311-1 | % | MD: 1-2% CD: 1-2% |
| Dimensional stability | EN 1107-1 (80°C) | % | -0,2<ΔL<0,2 |
| Stability under exposure to heat | DIN 52123 | °C | 100 |
| Fire reaction | EN 11925-2 | E |
